Additional Information

Insert Number: TA3504, TA3510, (available in CB & POS)

Tip Holder: TA556, TA557

Insert Screw: TA500S

Roller Assembly: 128, (pair)

Carrier: 5005

Tool Block: TA5003

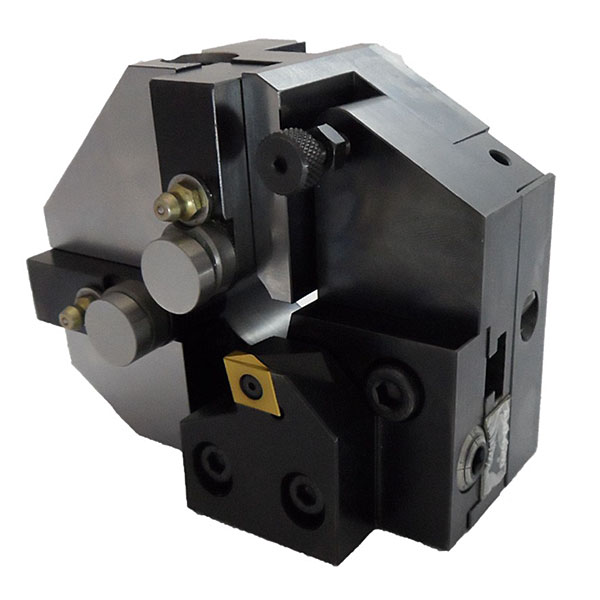

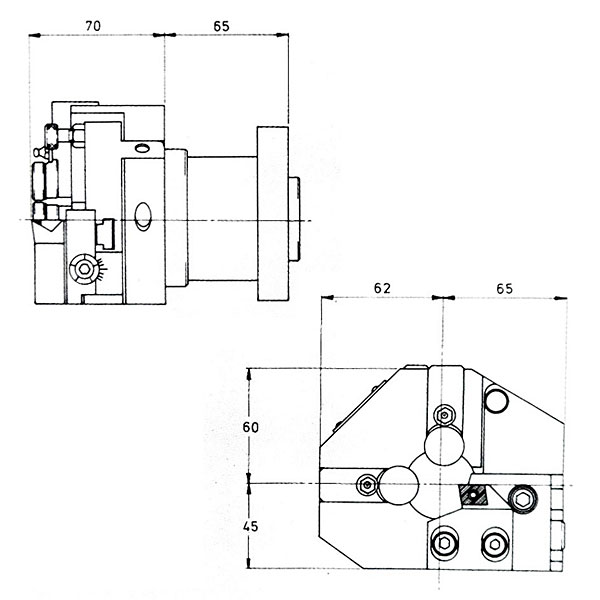

AR/T5 Roller Box

These auto-retract roller boxes are manufactured to a modular construction where the main body remains constant. Various back plates are available, not only to suit the recommendations shown. Back plates and shanks can be supplied to suit a wide variety of machines including CNC lathes, etc., including Wickman Type Centre Block Fitting.

The length of turn can also be modified to suit your requirements.
